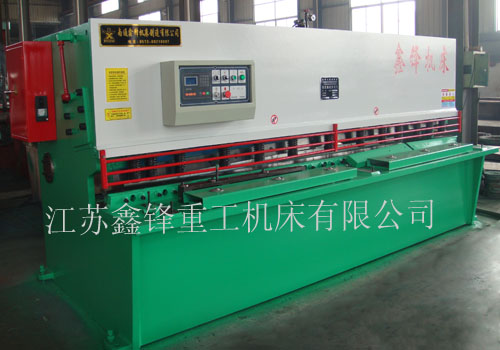

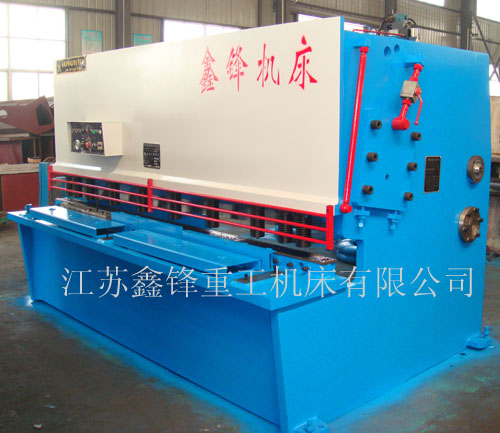

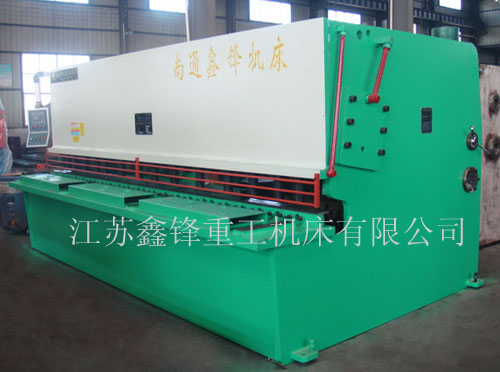

QC12Y Series Hydraulic Shearing Machine
|
The machine uses hydraulic transmission, swing blade whole-welded structure, high precision, good performance, particularly in automobile manufacturing, Denggan industry.
The handle can adjust blade-edge space from top to bottom ,The dial shows number. Lightly rapidly adjusted, accurate and reliable
Balde stroke can be adjust no steps, no lights on-the-line devices, materials and size decoder senser display number ,easy to use. |
|
Technical parameters:
|
|
Specification |
Sheet
Thickness
mm |
Sheet Width
mm |
Shear Angle |
Stroke times |
Back Gauge Range
mm |
Main Motor Powe
kw |
|
QC12Y-4¡Á2500 |
4 |
2500 |
1¡ã30' |
18 |
20-600 |
4 |
|
QC12Y-4¡Á3200 |
4 |
3200 |
1¡ã30' |
18 |
20-600 |
7.5 |
|
QC12Y-4¡Á4000 |
4 |
4000 |
1¡ã30' |
12 |
20-600 |
7.5 |
|
QC12Y-4¡Á6000 |
4 |
6000 |
1¡ã30' |
7 |
20-800 |
11 |
|
QC12Y-6¡Á2500 |
6 |
2500 |
1¡ã30' |
18 |
20-600 |
7.5 |
|
QC12Y-6¡Á3200 |
6 |
3200 |
1¡ã30' |
14 |
20-600 |
7.5 |
|
QC12Y-6¡Á4000 |
6 |
4000 |
1¡ã30' |
12 |
20-600 |
7.5 |
|
QC12Y-6¡Á6000 |
6 |
6000 |
1¡ã30' |
8 |
20-800 |
11 |
|
QC12Y-8¡Á2500 |
8 |
2500 |
1¡ã30' |
14 |
20-600 |
11 |
|
QC12Y-8¡Á3200 |
8 |
3200 |
1¡ã30' |
12 |
20-600 |
11 |
|
QC12Y-8¡Á4000 |
8 |
4000 |
1¡ã30' |
10 |
20-600 |
11 |
|
QC12Y-10¡Á2500 |
10 |
2500 |
1¡ã30' |
10 |
20-600 |
11 |
|
QC12Y10¡Á3200 |
10 |
3200 |
1¡ã30' |
10 |
20-600 |
11 |
|
QC12Y-10¡Á4000 |
10 |
4000 |
1¡ã30' |
8 |
20-600 |
11 |
|
QC12Y-12¡Á2500 |
12 |
2500 |
2¡ã |
10 |
20-600 |
15 |
|
QC12Y-12¡Á3200 |
12 |
3200 |
2¡ã |
9 |
20-600 |
15 |
|
QC12Y-12¡Á4000 |
12 |
4000 |
2¡ã |
8 |
20-600 |
18.5 |
|
QC12Y-16¡Á2500 |
16 |
2500 |
2¡ã |
8 |
20-800 |
18.5 |
|
QC12Y-16¡Á3200 |
16 |
3200 |
2¡ã |
7 |
20-600 |
18.5 |
|
QC12Y-16¡Á4000 |
16 |
4000 |
2¡ã |
6 |
20-600 |
18.5 |
|
QC12Y-20¡Á2500 |
20 |
2500 |
2¡ã30' |
7 |
20-800 |
22 |
|
QC12Y-20¡Á3200 |
20 |
3200 |
2¡ã30' |
6 |
20-800 |
22 |
|
QC12Y-20¡Á4000 |
20 |
4000 |
2¡ã30' |
5 |
20-800 |
22 |
|
QC12Y-25¡Á2000 |
25 |
2000 |
3¡ã |
8 |
20-800 |
37 |
|
QC12Y-25¡Á2500 |
25 |
2500 |
3¡ã |
6 |
20-800 |
37 |
|
QC12Y-25¡Á3200 |
25 |
2500 |
3¡ã |
6 |
20-800 |
37 |
|
QC12Y-25¡Á4000 |
25 |
4000 |
3¡ã |
5 |
20-800 |
37 |
|
QC12Y-32¡Á2500 |
32 |
2500 |
3.5¡ã |
5 |
20-1000 |
45 |
|
QC12Y-32¡Á3200 |
30 |
3200 |
3.5¡ã |
5 |
20-1000 |
45 |
|
QC12Y-40¡Á2500 |
40 |
2500 |
4¡ã |
4 |
20-1000 |
55 |
|
QC12Y-40¡Á3200 |
40 |
3200 |
4¡ã |
4 |
20-1000 |
55 |
|
QC12Y-50¡Á2500 |
50 |
2500 |
4¡ã |
3 |
20-1000 |
90 | |
