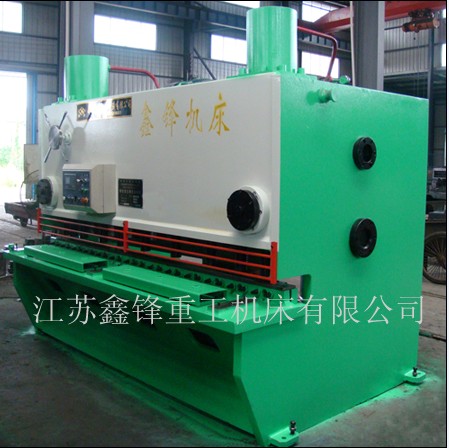

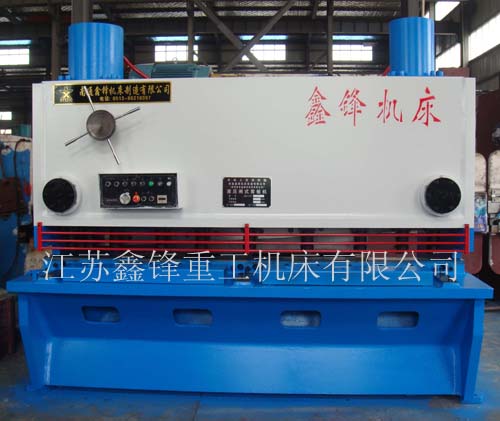

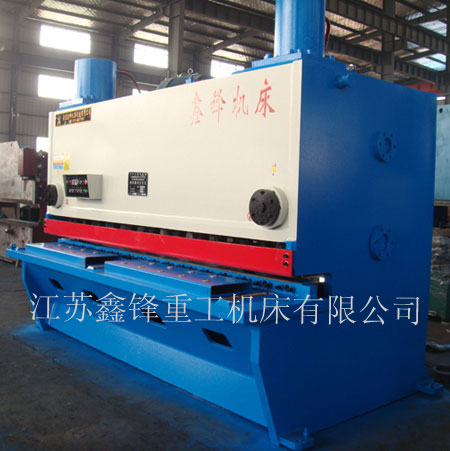

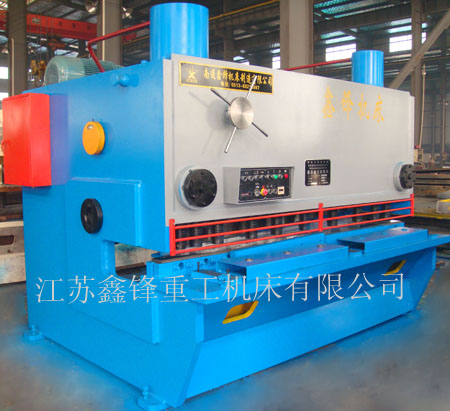

QC11Y series of hydraulic gate-cutting plate¡­
Category£ºShearing Machine Series > QC11Y series of hydraulic gate-cutting plate machine
Number£º0050004824
Specification£ºOpen
Type£ºQC11Y







Technical Parameters:

Specification Sheet

Thickness

Sheet Width Back Gauge Range Back material Heigth Shear Angle Back range Main Motor Powe Size
mm mm mm-1 mm (¡ã) mm kw mm
4¡Á2500 4 2500 18-30 600 0.5-1.5 100 5.5 3000¡Á2000¡Á1850
6¡Á2500 6 2500 15-25 600 0.5-1.5 125 7.5 3030¡Á2075¡Á1920
6¡Á3200 6 3200 12-26 600 0.5-1.5 125 7.5 3730¡Á2075¡Á1970
6¡Á4000 6 4000 12-25 600 0.5-1.5 125 7.5 4530¡Á2075¡Á2080
6¡Á5000 6 5000 8-20 600 0.5-1.5 125 7.5 5530¡Á2075¡Á2210
6¡Á6000 6 6000 6-18 600 0.5-1.5 125 7.5 6530¡Á2075¡Á2520
7¡Á7000 7 7000 5-15 600 0.5-1.5 125 11 7530¡Á2075¡Á2830
8¡Á2500 8 2500 10-22 600 0.5-1.5 125 7.5 3040¡Á2075¡Á1920
8¡Á3200 8 3200 10-20 600 0.5-1.5 125 7.5 3745¡Á2075¡Á1920
12¡Á2500 12 2500 8-20 600 0.5-2 125 15 3110¡Á2575¡Á2210
12¡Á3200 12 3200 6-18 600 0.5-2 125 18.5 4100¡Á2200¡Á2500
12¡Á4000 12 4000 6-15 600 0.5-2 125 22 4900¡Á2200¡Á2500
16¡Á2500 16 2500 8-20 600 0.5-2.5 125 22 3130¡Á2655¡Á2200
16¡Á4000 16 4000 5-15 750 0.5-2.5 125 30 4950¡Á2200¡Á2600
20¡Á2500 20 2500 6-18 750 0.5-2.5 125 30 3160¡Á2855¡Á2300
20¡Á4000 20 4000 5-15 750 0.5-2.5 125 37 5100¡Á2300¡Á2700
Added£º2010-05-23¡¡¡¡Views£º452
