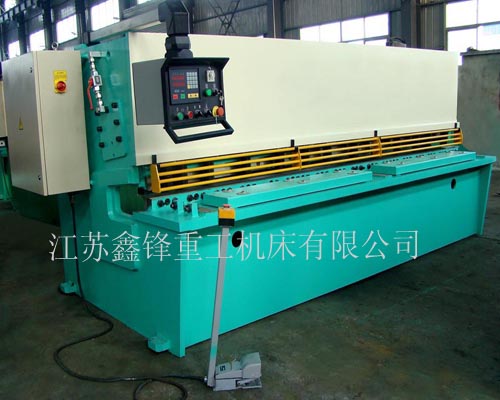

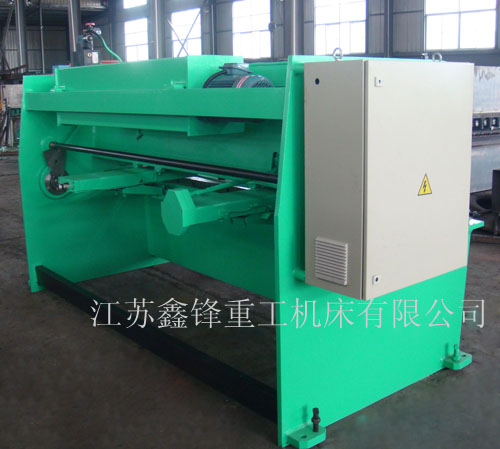

QC12K Series Digital Controlled Shearing Machine
|
Hydraulic transmission, tilting tool. Welding rugged rack as a whole, the use of nitrogen cylinder return, the rapid smooth.
No class trip with a regulation of functions, from top to bottom edge blade gap adjustment handle with the volume, uniform blade gap fast easy transfer.
Protection of electrical grid and ensure the safe operation of the chain.
CNC position encoder with the composition of the closed-loop control system, high speed and accuracy, stability, security will be able to accurately block size of the expected displacement precision numerical control system at the same time with a precision of compensation and automatic detection of a variety of additional Function. |
|
Technical Parameters:
|
Specification |
Sheet
Thickness
mm |
Sheet Width
mm |
Shear Angle |
Stroke times |
Back Gauge Range
mm |
Main Motor Powe
|
|
QC12K-4¡Á2500 |
4 |
2500 |
1¡ã30' |
18 |
20-600 |
4 |
|
QC12K-4¡Á3200 |
4 |
3200 |
1¡ã30' |
18 |
20-600 |
7.5 |
|
QC12K-4¡Á4000 |
4 |
4000 |
1¡ã30' |
12 |
20-600 |
7.5 |
|
QC12K-4¡Á6000 |
4 |
6000 |
1¡ã30' |
7 |
20-800 |
11 |
|
QC12K-6¡Á2500 |
6 |
2500 |
1¡ã30' |
18 |
20-600 |
7.5 |
|
QC12K-6¡Á3200 |
6 |
3200 |
1¡ã30' |
14 |
20-600 |
7.5 |
|
QC12K-6¡Á4000 |
6 |
4000 |
1¡ã30' |
12 |
20-600 |
7.5 |
|
QC12K-6¡Á6000 |
6 |
6000 |
1¡ã30' |
7 |
20-800 |
11 |
|
QC12K-8¡Á2500 |
8 |
2500 |
1¡ã30' |
14 |
20-600 |
11 |
|
QC12K-8¡Á3200 |
8 |
3200 |
1¡ã30' |
10 |
20-600 |
11 |
|
QC12K-8¡Á4000 |
8 |
4000 |
1¡ã30' |
8 |
20-600 |
11 |
|
QC12K-10¡Á2500 |
10 |
2500 |
1¡ã30' |
10 |
20-600 |
11 |
|
QC12K10¡Á3200 |
10 |
3200 |
1¡ã30' |
10 |
20-600 |
11 |
|
QC12K-10¡Á4000 |
10 |
4000 |
1¡ã30' |
8 |
20-600 |
11 |
|
QC12K-12¡Á2500 |
12 |
2500 |
2¡ã |
10 |
20-600 |
15 |
|
QC12K-12¡Á3200 |
12 |
3200 |
2¡ã |
9 |
20-600 |
15 |
|
QC12K-12¡Á4000 |
12 |
4000 |
2¡ã |
8 |
20-600 |
18.5 |
|
QC12K-12¡Á6000 |
12 |
6000 |
2¡ã |
6 |
20-600 |
18.5 |
|
QC12K-16¡Á2500 |
16 |
2500 |
2¡ã |
8 |
20-800 |
18.5 |
|
QC12K-16¡Á3200 |
16 |
3200 |
2¡ã |
7 |
20-600 |
18.5 |
|
QC12K-16¡Á4000 |
16 |
4000 |
2¡ã |
5 |
20-600 |
18.5 |
|
QC12K-20¡Á2500 |
20 |
2500 |
2¡ã30' |
7 |
20-800 |
22 |
|
QC12K-20¡Á3200 |
20 |
3200 |
2¡ã30' |
6 |
20-800 |
22 |
|
QC12K-20¡Á4000 |
20 |
4000 |
2¡ã30' |
5 |
20-800 |
22 |
|
QC12K-25¡Á2000 |
25 |
2000 |
3¡ã |
8 |
20-800 |
37 |
|
QC12K-25¡Á2500 |
25 |
2500 |
3¡ã |
6 |
20-800 |
37 |
|
QC12K-25¡Á3200 |
25 |
2500 |
3¡ã |
5 |
20-800 |
37 |
|
QC12K-25¡Á4000 |
25 |
4000 |
3¡ã |
4 |
20-800 |
37 |
|
QC12K-32¡Á2500 |
32 |
2500 |
3¡ã |
|
20-1000 |
45 |
|
QC12K-32¡Á3200 |
30 |
3200 |
3¡ã |
4 |
20-1000 |
45 |
|
QC12K-40¡Á2500 |
40 |
2500 |
3¡ã |
4 |
20-1000 |
55 | |
