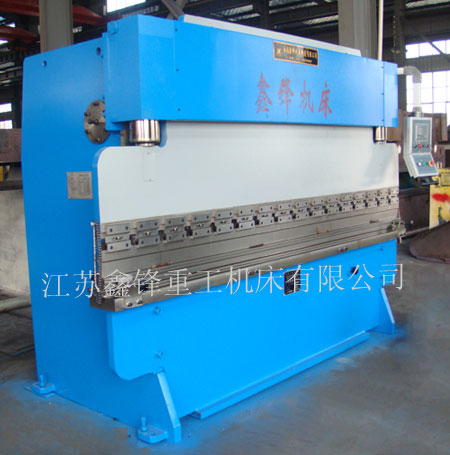

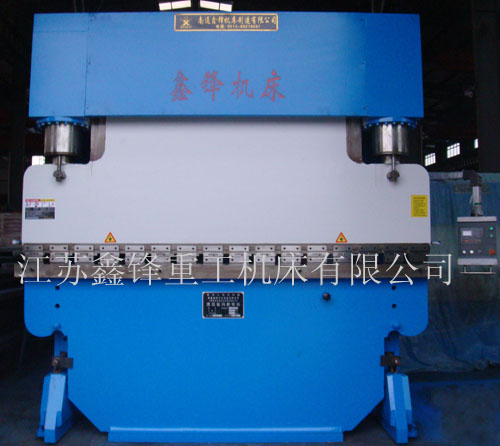

WC67Y Series Hydraulic Sheet-Bending Machine
|
Characteristics:
Main body uses WC67Y Series bending machine;
Equipped with E20 + for CNC system of DELEM company;
Back material (X), slider range(Y) by computer control;
Back materials use precision ball mandrel;
Can be equipped as per your choice. |
|
Technical parameters:
|
Model |
Nominal Pressure
kn |
Worktable Langth
mm |
Distance betwwen Vertical Colomns
mm |
Throat Depth
mm |
Slider Range
mm |
Max Open Height
mm |
Motor Power
KW |
Size
mm |
|
WC67Y-40T/2500 |
400 |
2500 |
2000 |
200 |
100 |
250 |
4 |
2560¡Á1250¡Á1800 |
|
WC67Y-63T/2500 |
630 |
2500 |
2000 |
250 |
100 |
350 |
5.5 |
2560¡Á1650¡Á2200 |
|
WC67Y-63T/3200 |
630 |
3200 |
2500 |
250 |
100 |
350 |
5.5 |
3260¡Á1680¡Á2300 |
|
WC67Y-100T/3200 |
1000 |
3200 |
2500 |
320 |
120 |
370 |
7.5 |
3260¡Á1780¡Á2350 |
|
WC67Y-100T/4000 |
1000 |
4000 |
3200 |
320 |
120 |
370 |
7.5 |
4060¡Á1800¡Á2350 |
|
WC67Y-160T/3200 |
1600 |
3200 |
2600 |
320 |
200 |
470 |
11 |
3260¡Á1940¡Á2600 |
|
WC67Y-160T/4000 |
1600 |
4000 |
3200 |
320 |
200 |
470 |
11 |
4060¡Á1960¡Á2680 |
|
WC67Y-200T/3200 |
2000 |
3200 |
2600 |
320 |
200 |
470 |
15 |
3260¡Á1980¡Á3100 |
|
WC67Y-200T/4000 |
2000 |
4000 |
3200 |
320 |
200 |
470 |
15 |
4080¡Á2050¡Á3300 |
|
WC67Y-250T/4000 |
2500 |
4000 |
3200 |
320 |
200 |
520 |
18.5 |
4080¡Á2180¡Á3450 |
|
WC67Y-250T/6000 |
2500 |
6000 |
4800 |
320 |
250 |
560 |
18.5 |
6100¡Á2280¡Á3800 |
|
WC67Y-300T/4000 |
3000 |
4000 |
3200 |
400 |
250 |
560 |
18.5 |
4100¡Á2200¡Á3500 |
|
WC67Y-300T/6000 |
3000 |
6000 |
4800 |
400 |
250 |
560 |
18.5 |
6080¡Á2350¡Á3880 |
|
WC67Y-350T/4000 |
3500 |
4000 |
3200 |
320 |
250 |
560 |
22 |
4100¡Á2300¡Á3800 |
|
WC67Y-400T/5000 |
4000 |
5000 |
4000 |
400 |
250 |
560 |
30 |
5100¡Á2400¡Á3960 |
|
WC67Y-500T/6000 |
5000 |
6000 |
4800 |
400 |
250 |
700 |
37 |
6100¡Á2400¡Á4200 | |
