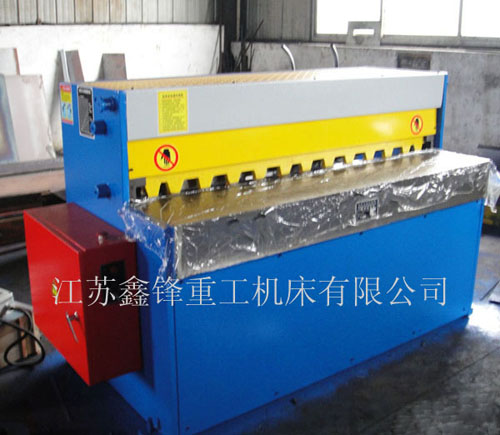

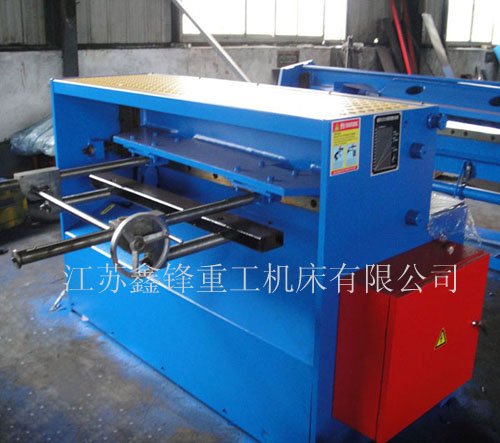

QH11D Series Precision Shearing Machine
|
Performance and features:
Use brake motor with electromagnetic disc brakes to drive shaft reducer operation, instantaneous connecting can be reached by te pedal controller. it is recognized at home and abroad as the most advanced small shearing machine. Use small shear angle and tilt the shear direction so that the deformation reduce to a minimum . The blade gap can be adjusted quickly by manual tuning It is ideal Shearing processing equipment for metal and non-metallic sheet . |
|
Technical parameters: |
|
Specification |
Sheet Thickness
mm |
Sheet Width
mm |
Shear angle |
Stroke times
1/mm |
Back Gauge Range
mm |
|
|
|
|
3.5*1250 |
3.5 |
1250 |
1¡ã30' |
47 |
0-650 |
800 |
5.5 |
1860*2210*1180 |
|
3.5*1300 |
3.5 |
1300 |
1¡ã30' |
47 |
0-650 |
800 |
5.5 |
1860*2210*1180 |
|
3.2*2000 |
3.2 |
2000 |
1¡ã45 |
47 |
0-650 |
800 |
7.5 |
2624*2210*1180 |
|
2.5*2500 |
2.5 |
2500 |
1¡ã |
47 |
0-650 |
800 |
7.5 |
3124*2210*1180 |
|
3.2*2500 |
3.2 |
2500 |
1¡ã18' |
47 |
0-650 |
800 |
7.5 |
3124*2210*1180 |
|
3.5*3050 |
3.5 |
3050 |
1¡ã30' |
47 |
0-650 |
800 |
9.0 |
3599*2448*1290 |
|
2.0*3660 |
2.0 |
3660 |
1¡ã30' |
47 |
0-650 |
800 |
9.0 |
4200*2448*1240 | |
