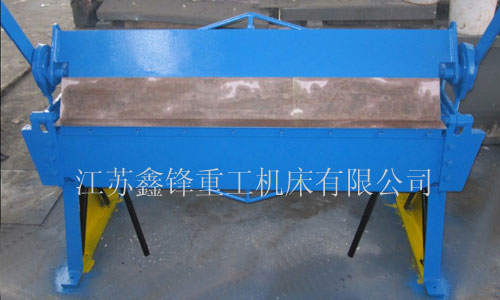

WH06 Series Manual Bending Machine
Category£ºBending Machine > WH06 Series Manual Bending Machine
Number£º0050003132
Specification£ºOpen
Type£ºWH06




    Performance and features:
    Equipped with active dividable upper mould, can  adjust according to different sizes. It can  bend sheet metal into a four-sided-one bottom  box ,but also  an make rolling upside at the the upper part of the box. All the moulds are installed in the machine tool itself. Apply to the production distribution box, electronic switches box, fuse box and distribution counters, but also widely used in transportation machinery, moving boxes, various types of disk box
.

Specification
Bending Length
mm
Steel Thickness
mm
Size
mm
WH06-2.5*1220
1220
2.5
1700*700*960
WH06-2.5*1500
1500
2.5
2000*700*960
WH06-2*2000
2000
2
2500*700*960
WH06-1.5*2500
2500
1.5
3000*700*960
WH06-1*3200
3200
1
3700*700*960
WH06-2*1220A
1220
2
1700*700*960
WH06-2*2000A
2000
2
2500*700*960
WH06-1*3200A
3200
1
3700*700*960
WH06-1.5*1070B
1070
1.5
1570*650*800
