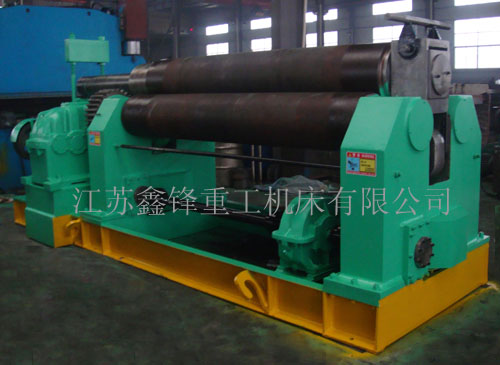

3 Rollers Symmetric Mechanic Folding Machine

Category：Rolling Machine Series > 3 Rollers Symmetric Mechanic Folding Machine
Number：0050003134
Specification：Open
Type：Three

    Performance and features:
    It is three-roll symmetric structure, upper roller makes vertical take-off and landing symmetric movement on the symmetric position of the central of two rollers under through the transmtting of screw mandrel. The two rollers make the rotating movement through the output gear of reducer and the roller under to provide torque for sheet
    It need other equipment pre-bend the end of the sheet .

Technical parameters：

Specification	Max Sheet Thickness mm	Max Sheet Width mm	Mpa Sheet Bending Limit	Bending Speed m/min	Full Load Dia mm	Upper Roller Dia mm	Lower Roller Dia mm	Distance between twolower rollers mm	Main Motor Power kw	Size
W11-6×1500	6	1500	245	7.16	380	180	170	210	4	3310×1210×1330
W11-6×2000	6	2000	245	7.16	380	180	170	210	5.5	3310×1210×1330
W11-6×2500	6	2500	245	7.16	500	190	170	260	5.5	4310×1210×1330
W11-6×3200	6	3200	245	6.46	500	240	200	310	7.5	5200×1400×1200
W11-8×2000	8	2000	245	7.16	450	190	170	260	7.5	3810×1210×1330
W11-8×2500	8	2500	245	6.46	500	240	200	310	11	4500×1420×1610
W11-12×2000	12	2000	245	6.46	500	240	200	310	11	4050×1420×1610
W11-12×2500	12	2500	245	5	750	280	240	360	11	5000×1500×1300
W11-12×3000	12	3000	245	5	650	280	240	360	11	5500×1500×1300
W11-16×2000	16	2500	245	5	750	280	240	360	11	4500×1500×1300
W11-16×2500	16	2500	245	5	750	330	240	360	11	5000×1500×1300
W11-16×3000	16	3000	245	5	900	340	280	440	11	6300×1600×1900
W11-20×2000	20	2000	245	5	750	280	240	440	11	4500×1500×1300
W11-20×2500	20	2500	245	5	850	340	280	490	15	5600×1600×1900
W11-25×2000	25	2000	245	5	850	340	280	490	22	5100×1600×1900
W11-25×2500	25	2500	245	4.5	900	380	300	600	30	6000×4600×2150
W11-30×2000	30	2000	245	4.5	900	380	300	600	30	5500×1460×2150
W11-30×2500	30	2500	245	4.3	1100	460	380	600	37	6900×2300×2800
W11-30×3000	30	3000	245	5	1200	480	400	600	37	7400×2300×2600
W11-30×3200	30	3200	245	5	1200	500	400	600	37	7600×2300×2600
W11-40×2000	40	2000	245	5	1200	480	400	600	37	6400×2300×2800
W11-40×2500	40	2500	245	5	1400	500	400	600	37	6900×2300×2800
W11-40×3000	40	3000	245	4.37	1600	500	400	350	45	8000×1980×2250
W11-50×3000	50	3000	245	4	2000	600	480	700	60	9900×3100×3500
W11-60×3000	60	3000	245	4	2000	700	560	800	75	9700×3200×2700
