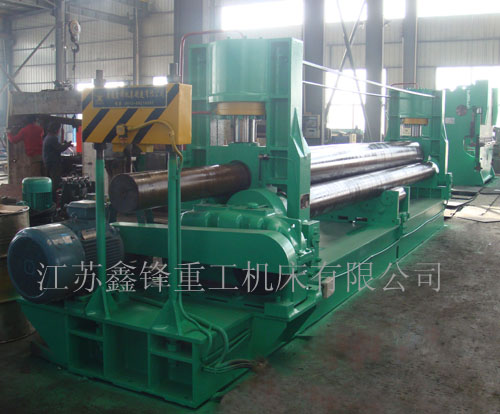

3 Rollers Hydraulic Folding Machine

Category：Rolling Machine Series > 3 Rollers Hydraulic Folding Machine
Number：0050001137
Specification：Open
Type：Hydraulic

It is three-roll symmetric structure, upper roller makes vertical take-off and landing symmetric movement on the symmetric position of the central of two rollers under through the hydraulic oil of the hydraulic-cylinder working on the Pistons .The two rollers make the rotating movement through the output gear of reducer and the roller under to provide torque for sheet.

Technical parameters：

Specification	Max Sheet Thickness mm	Max Sheet Width mm	Sheet Bending Limit Mpa	Bending Speed m/min	Full Load Dia mm	Upper Roller Dia mm	Lower Roller Dia mm	Distance between twolower rollers mm	Main Motor Power kw	Hydraulic Motor Power kw
W11-30*2000	30	2000	245	4	1200	360	290	480	22	7.5
W11-25*2500	25	2500	245	4	1200	370	300	480	22	7.5
W11-30*2500	30	2500	245	4	1200	420	360	550	30	11
W11-25*3000	25	3000	245	4	1200	430	370	550	30	11
W11-30*3000	30	3000	245	4	1200	450	390	600	30	11
W11-40*2500	40	2500	245	3.5	1400	500	400	600	37	15
W11-40*3000	40	3000	245	3.5	1600	540	440	600	45	18.5
W11-50*3000	50	300	245	3.5	2000	580	480	750	55	22
W11-60*3000	60	3000	245	3.5	2400	660	560	800	75	30
W11-70*3000	70	3000	245	3.5	2800	710	620	850	90	37
W11-80*3000	80	3000	245	3.5	3200	770	680	900	90	37
W11-90*3000	90	3000	245	3.5	3600	820	730	950	110	45
W11-100*3000	100	3000	245	3.5	4000	860	770	1000	110	45
W11-110*3000	110	3000	245	3.5	4400	900	810	1080	132	55
W11-120*3000	120	3000	245	3.5	4800	950	860	1160	132	55
